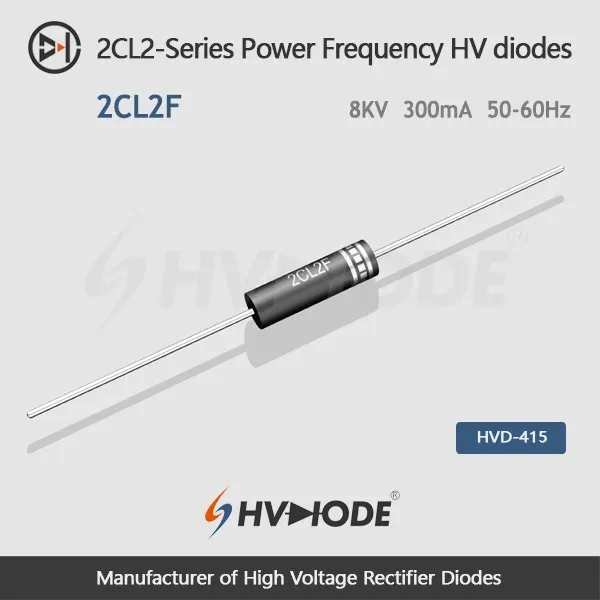

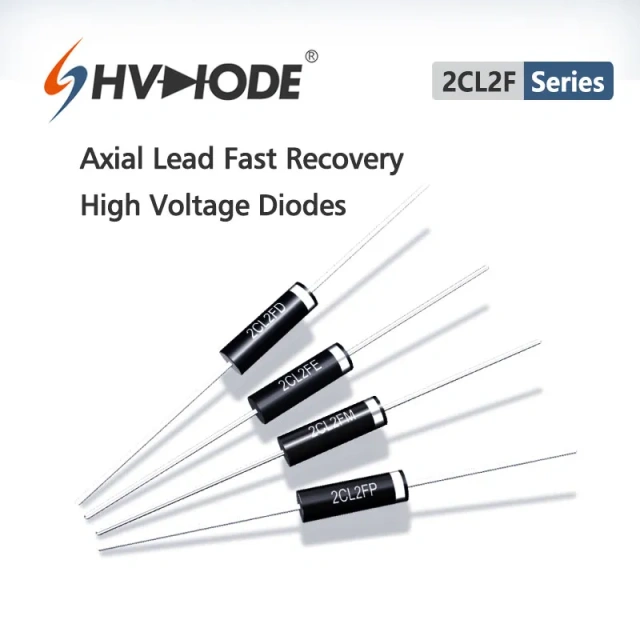

2CL2F-Series Axial Lead Fast Recovery High Voltage Diodes

HVDIODE's 2CL2F series axial lead fast recovery high voltage diode has an ultra-low power design, greatly improves the conversion efficiency of the rectifier circuit, and performs well in high temperature environments.
It provides a maximum capacity of 4~40KV 100~250mA and a fast recovery time of 100nS.
It is very suitable for compact high-performance applications.

Products Main features：

Products Main Parameters

Wide Voltage Range for Diverse Applications

The 2CL2F-Series diodes are engineered to handle a broad spectrum of reverse voltages, ranging from 4KV to 40KV. This versatility makes them suitable for various high voltage rectifier applications, including power supplies, voltage multipliers, and high-voltage testing equipment.

Fast Recovery Time Enhances Efficiency

Featuring a rapid recovery time of 100nS, these diodes minimize switching losses, making them perfect for high-frequency high voltage diode rectifier circuits and improving overall system efficiency.

Superior Thermal Performance

Constructed with high thermal conductivity epoxy molding, the 2CL2F-Series offers excellent heat dissipation. This ensures stable operation even under high current loads, enhancing the longevity of your high voltage rectifier diode systems.

Durable Construction for Long-Term Reliability

The diodes feature a robust axial lead design with epoxy encapsulation, providing protection against environmental factors. This design ensures consistent performance in various high voltage bridge rectifier applications.



Product Advantages

Versatile Voltage and Current Ratings
With options ranging from 4KV to 40KV and 100mA to 250mA, the 2CL2F-Series caters to a wide array of high voltage rectifier needs.

Rapid Switching Capability
A swift 100nS recovery time enhances efficiency in high-frequency rectifier high voltage circuits.

Robust Thermal Management
High thermal conductivity materials ensure reliable operation under continuous high-current conditions.

Durable Epoxy Encapsulation
Provides excellent protection against environmental stress, ensuring long-term reliability in high voltage diode rectifier systems.

Compact Axial Lead Design
Facilitates easy integration into various high voltage bridge rectifier configurations, optimizing space without compromising performance.


Looking for reliable and efficient high-voltage rectification solutions? Contact the HVDIODE team today for detailed specifications, pricing, and support tailored to your project requirements.
