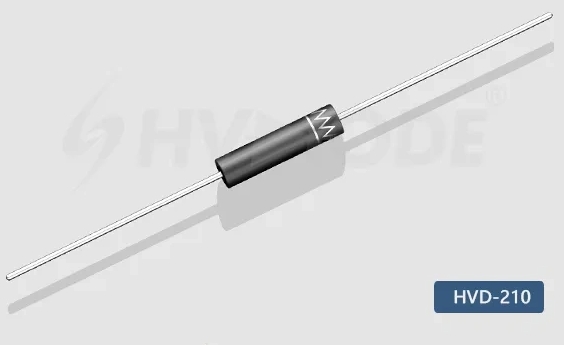

Name: 2CL76A Fast Recovery High Voltage Diode 18KV 5mA 80nS
Brand: HVDIODE - Suly Electronics Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Products Main features：
1、Axial leaded connection.
2、High thermal conductivity epoxy compound molding.
3、Low internal resistance reduces energy loss.
4、Special passivation glue chip protection
5、Excellent discharge characteristics.

GET A QUOTE Download

Desciption
data sheet
Installation Guide

2CL76A Fast Recovery High Voltage Diode Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=2.0μA	18
Peak Working Backward Voltage	Vrwm	KV	Ta=25℃ Ir=2.0μA	18
Average Forward Current	If(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50℃	5
Backward Recovery Time	Trr	nS		80
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	0.5
Operating Ambient Temperature	Ta	℃		-55～+150
Storage Temperature	Tstg	℃		-55～+125
Forward Peak Voltage	Vfm	V		≥43.0
Backward Peak Current	Irrm1	μA	@ Ta=25℃ VRM=VRRM	2.0
Backward Peak Current	Irrm2	μA	@ Ta=100℃ VRM=VRRM	20.0
