BRUF Series Ultra Fast Recovery High Voltage Diodes

Ultra-Fast Recovery for Peak Efficiency
The BRUF Series features fast recovery diodes that provide an ultra-fast recovery time of 40ns, ensuring minimal power loss and increased energy efficiency in high-speed circuits. This makes them perfect for use in bridge rectifier systems and rectifier high voltage applications, where efficiency and reliability are crucial.

High Voltage Capability for Robust Performance
With voltage ratings ranging from 2KV to 10KV and a current range of 200mA to 800mA, the BRUF Series is designed to handle a wide range of high voltage diodes applications. Whether you are working with diode PCB or complex pcb and assembly projects, these diodes deliver consistent performance under high stress.

Engineered for Long-Term Reliability
Manufactured with high-quality materials, the BRUF Series diodes are built to withstand harsh environments while maintaining performance. The use of superior passivation materials ensures long-lasting reliability, making them ideal for mission-critical applications where downtime is not an option.

Versatile for Various Applications
The BRUF Series is suitable for a wide variety of applications, from industrial power supplies to medical equipment and telecommunications. Their ability to handle high voltages with ultra-fast recovery times makes them ideal for use in high power diode systems and rectifier bridge circuits.


Product Advantages
40ns Fast Recovery: Ensures efficient energy conversion in high-speed circuits.
Wide Voltage Range: Available from 2KV to 10KV, ideal for a broad spectrum of high voltage rectifier needs.
Superior Reliability: Built with high-quality materials for long-term, trouble-free operation.
Wide Application Scope: Perfect for high power diode systems, bridge rectifier circuits, and more.
Industrial-Grade Performance: Designed to perform under high-voltage and demanding conditions.

About Us

Industry Leadership: Advancing High-Voltage Rectifier Technologies Since 2008

At HVDIODE, we specialize in manufacturing semiconductor high-voltage rectifier components, combining advanced production capabilities with deep application expertise to serve global industrial and research sectors.

Core Manufacturing Strengths and Quality Assurance

• Advanced Production Facilities: Equipped with multi-voltage high-voltage test benches, high/low temperature test chambers, leakage current testers, TRR testers, and surge impact benches, all certified by national metrology units.
• Comprehensive Certification System: ISO 9001 Quality Management Certification, RoHS Environmental Compliance Certification, and SGS Global Inspection Certification ensure our strict adherence to international standards.
• Research and Development Excellence: A dedicated R&D team actively develops new technologies and holds multiple national patents for innovations in high-voltage applications.

Production Capability at a Glance

• Established: Since 2008, over 15 years of manufacturing excellence.
• Product Range: High Voltage Diodes, Ultra Fast Recovery Diodes, Silicon Carbide Diodes, High Voltage Rectifier Bridges, High Voltage Rectifier Assemblies, and Custom High-Voltage Modules.
• Testing Equipment: 20+ sets of certified precision testing devices to ensure every parameter meets stringent requirements.

Commitment to Sustainability

At HVDIODE, we integrate environmental responsibility into our operations by adhering to RoHS standards and continuously innovating towards energy-efficient and long-lasting diode solutions.

Seamless Customer Collaboration Process

• Requirement Analysis – Understand your specifications and application needs.
• Tailored Solutions – Provide expert design and product recommendations.
• Production and Testing – Execute manufacturing with rigorous multi-stage inspections.
• Global Delivery – Fast, reliable logistics to ensure timely delivery worldwide.
• After-Sales Support – Continuous technical assistance and product optimization services.

Global Service Reach

Our products are trusted by top universities, research institutes, and high-end enterprises across Asia, Europe, and the Americas. We offer multilingual customer service, customized OEM/ODM solutions, and comprehensive technical support, ensuring you can rely on us wherever your business operates.

Partner with HVDIODE today and experience unmatched expertise, quality, and service in high-voltage rectification technology. Let's power innovation together — contact us now!

FAQ

Who are we?
We are HVDIODE, a leading manufacturer specializing in high-voltage rectifier components, with over 15 years of industry experience and a strong focus on innovation and quality.

How can we guarantee quality?
Our products undergo multi-stage testing using certified equipment, backed by ISO9001, RoHS, and SGS certifications to ensure the highest standards in every unit delivered.

What can you buy from us?
You can purchase High Voltage Diodes, SMD High Voltage Diodes, Ultra Fast Recovery Diodes, High Voltage Rectifier Bridges, High Voltage Silicon Stacks, and Customized High Voltage Modules.

Why should you buy from us not from other suppliers?
We combine cutting-edge R&D, strict quality control, global certifications, and over 15 years of production expertise, delivering reliable, tailored solutions that meet diverse high-voltage needs.

What services can we provide?
We provide product customization, technical consultation, OEM/ODM services, rapid global logistics, and after-sales technical support to ensure seamless project execution and long-term reliability.

Ready to enhance your high-voltage applications with the BRUF Series? Contact HVDIODE today for high-quality diodes and expert support. Let us help you power your projects efficiently and reliably!



BRUF-Series Ultra Fast Recovery High Voltage diodes (2-10KV；200-800mA；40nS)

Type	Vrrm(KV)	Io(mA)	Trr(nS)	Ifsm(A)	Vfm(V)	Irrm1/Irrm2(uA)	Photo
	Ta=25℃ Ir=2uA	Ta=25℃		tp=8.3ms 25℃	Max	Ta=25℃/100℃
BR02UF	2	800	40	30	4.2	2/20
BR03UF	3	800	40	30	6.3	2/20
BR04UF	4	550	40	30	8.4	2/20
BR05UF	5	550	40	30	10.5	2/20
BR06UF	6	450	40	30	12.6	2/20
BR07UF	7	450	40	30	14.7	2/20
BR08UF	8	350	40	30	16.8	2/20

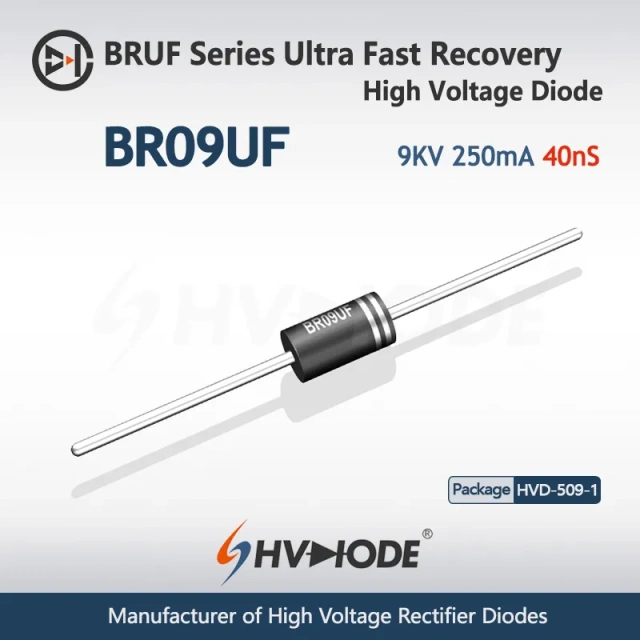

BR09UF	9	250	40	30	18.9	2/20
BR10UF	10	200	40	30	21.0	2/20
Junction Temperature(MAX) Temperature -55～+150℃; Storage Temperature -55～+150℃; The models are not displayed individually, please contact customer service for specific requirements sales@hvdiode.com

Characteristics of insulation adhesive material:

Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.
