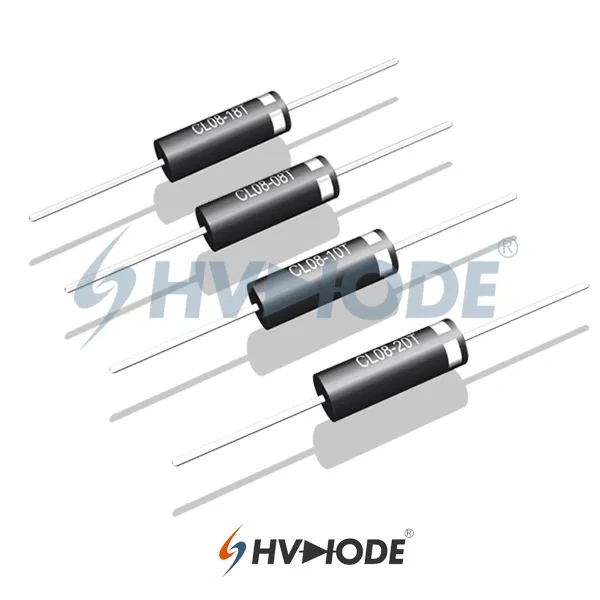

| CL08-12T Ultra Fast Recovery High Voltage Diode Data Sheet |
| Parameter |
Symbol |
Unit |
Test Conditions |
Value |
| Repetitive Peak Backward Voltage |
Vrrm |
KV |
Ta=25℃ Ir=2.0μA |
12 |
| Peak Working Backward Voltage |
Vrwm |
KV |
Ta=25℃ Ir=2.0μA |
12 |
| Average Forward Current |
If(AV) |
mA |
50Hz Half-sine Wave , Resistance load @Tbreak=50℃ |
300 |
| Backward Recovery Time |
Trr |
nS |
|
60 |
| Surge Forward Current |
Ifsm |
A |
0.01S @ Half-Sine wave 50Hz |
20 |
| Junction Temperature(MAX) |
Ta |
℃ |
|
-40～+150 |
| Storage Temperature |
Tstg |
℃ |
|
-40～+125 |
| Forward Peak Voltage |
Vfm |
V |
|
≥19.0 |
| Backward Peak Current |
Irrm1 |
μA |
@ Ta=25℃ VRM=VRRM |
2 |
| Irrm2 |
μA |
@ Ta=100℃ VRM=VRRM |
20.0 |
| Absolute Maximum Ratings & Electrical Characteristics |
Maximize Efficiency with Ultra-Fast 60ns RecoveryThe CL08-12T features an ultra-fast 60ns backward recovery time, reducing switching losses and improving energy efficiency in rectifier bridge and fast diodes applications. It is an excellent choice for advanced industrial and high-frequency systems demanding precise timing and quick energy transfer.Reliable High Voltage OperationWith a 12KV repetitive peak backward voltage, the CL08-12T guarantees safe and reliable performance under high-stress conditions. This diode is ideal for high voltage diodes used in industrial power supplies, telecommunications, and energy conversion systems where stable voltage management is critical.Built for Durability and Long-Term StabilityConstructed with high thermal conductivity epoxy compound molding and protected by special high-temperature resistant chip glue, the CL08-12T ensures superior thermal management and extended lifespan, even under extreme operating environments common in diode pcb and pcb and assembly applications.Surge Resistance and High Power EnduranceThe CL08-12T is capable of handling up to 20A surge forward current (0.01s at 50Hz), providing enhanced protection against voltage spikes. Its robust structure makes it ideal for high power diode circuits, ensuring system safety and reliability over long operational periods.Flexible Axial Leaded IntegrationThe axial leaded design allows for easy integration into various pcb diode configurations, enabling quick assembly and strong mechanical stability across different installation setups in industrial and commercial systems.
Product Advantages
- 60ns Ultra-Fast Recovery Time: Maximizes switching efficiency and minimizes power losses.
- 12KV High Voltage Rating: Supports high voltage rectifier and rectifier bridge system requirements.
- Robust Surge Handling: Withstands 20A surge forward current for enhanced durability.
- Superior Heat Dissipation: Built with high thermal conductivity epoxy for reliable high-temperature performance.
- Axial Leaded Structure: Simplifies installation in diode PCB and pcb and assembly applications.
