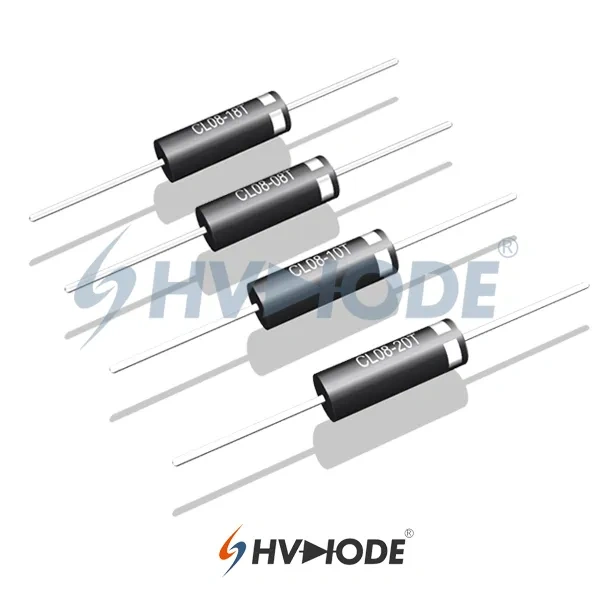

| CL08-15T Ultra Fast Recovery High Voltage Diode Data Sheet |
| Parameter |
Symbol |
Unit |
Test Conditions |
Value |
| Repetitive Peak Backward Voltage |
Vrrm |
KV |
Ta=25℃ Ir=2.0μA |
15 |
| Peak Working Backward Voltage |
Vrwm |
KV |
Ta=25℃ Ir=2.0μA |
15 |
| Average Forward Current |
If(AV) |
mA |
50Hz Half-sine Wave , Resistance load @Tbreak=50℃ |
250 |
| Backward Recovery Time |
Trr |
nS |
|
60 |
| Surge Forward Current |
Ifsm |
A |
0.01S @ Half-Sine wave 50Hz |
20 |
| Junction Temperature(MAX) |
Ta |
℃ |
|
-40～+150 |
| Storage Temperature |
Tstg |
℃ |
|
-40～+125 |
| Forward Peak Voltage |
Vfm |
V |
|
≥23.0 |
| Backward Peak Current |
Irrm1 |
μA |
@ Ta=25℃ VRM=VRRM |
2 |
| Irrm2 |
μA |
@ Ta=100℃ VRM=VRRM |
20.0 |
| Absolute Maximum Ratings & Electrical Characteristics |
Fast Recovery Time for Efficient Power ConversionThe CL08-15T diode is engineered with an ultra-fast 60ns reverse recovery time, which allows for quick switching and minimal power loss. This makes it perfect for bridge rectifier systems, rectifier bridge designs, and other high voltage rectifier applications, where fast recovery times are critical for system efficiency.High Voltage Capacity for Reliable PerformanceThe CL08-15T offers 15KV peak repetitive reverse voltage and 250mA average forward current, making it ideal for high-power applications such as power supplies, medical devices, and industrial equipment. It performs reliably under high stress, ensuring consistent output even in demanding environments.Durable Construction for Long-Term ReliabilityManufactured with high thermal conductivity epoxy, the CL08-15T provides excellent heat dissipation, preventing thermal damage during high-load operations. The diode is also equipped with special high-temperature resistant chip protective glue, ensuring durability in extreme conditions.Surge Resistance and Enhanced Discharge CharacteristicsThe CL08-15T diode excels in handling surge currents, thanks to its ability to withstand 20A surge forward current. Its excellent discharge characteristics help maintain stable performance even during sudden voltage spikes or operational transients.Easy Integration with SMD and Axial Lead DesignWith its axial leaded configuration, the CL08-15T is easy to integrate into PCB and assembly projects. This makes it ideal for diode PCB designs and high-voltage systems that require a compact yet powerful solution.
Product Advantages
- Ultra-Fast 60ns Recovery: Minimizes switching losses and improves overall system efficiency.
- 15KV High Voltage Rating: Perfect for rectifier high voltage applications in industrial and high-power systems.
- Robust Construction: High thermal conductivity epoxy and protective glue ensure long-term durability.
- Surge Current Resistance: Capable of handling up to 20A surge forward current.
- Versatile Axial Lead Design: Ideal for diode PCB and pcb and assembly projects.
