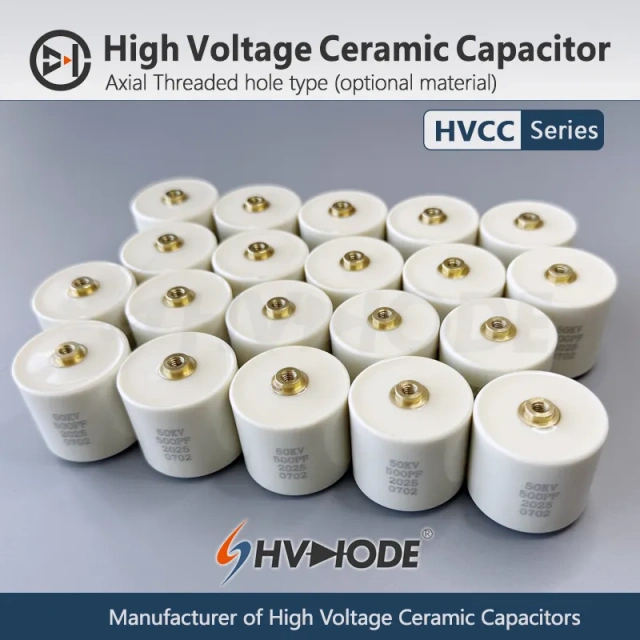

This specification provides detailed information on the technical parameters, mechanical dimensions and performance indicators of high-voltage ceramic capacitors. It is suitable for high-voltage application loops and offers outstanding electrical performance and reliability.
直径 (D):32 mm
高度 (H):32 mm (含铜螺母)
螺栓孔:M4
| Parameters | Specification |
|---|---|
| Electric capacity | 500 pF ±10% |
| Rated voltage | 50 KV (DC) |
| Material voltage resistance | ≥75 KV (DC) |
| Insulation resistance | ≥10,000 MΩ |
| Dielectric loss (tanδ) | ≤0.2% |
| Partial discharge (50KV) | ≤5 pc |
| Operating ambient temperature | -40°C to +80°C |
| Temperature characteristics (material) | YST |
| Colour | white |
