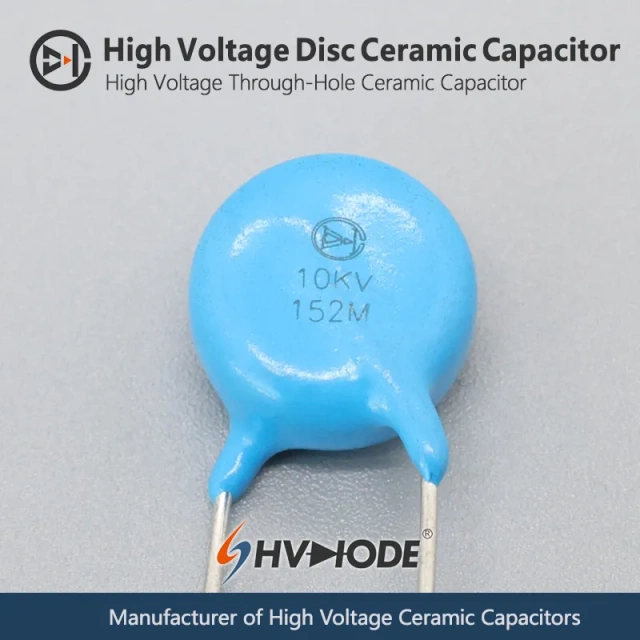

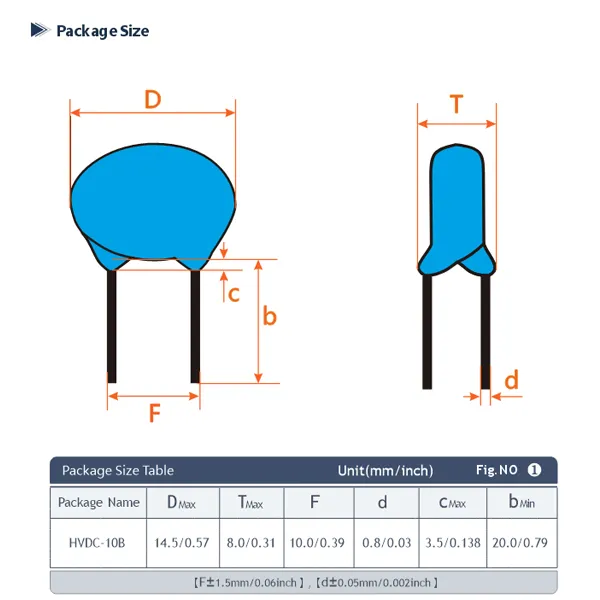

External Dimensions
Electrical Characteristics (25°C)
| Parameters | Specification |
|---|---|
| Electric Capacity | 1500 pF ±10% |
| Rated Voltage | 10 KV (DC) |
| Material Voltage Resistance | ≥15KVDC/60S |
| Insulation Resistance | ≥10⁴ MΩ |
| Dielectric Loss (tanδ) | ≤150×10 -4 @ 25℃,1kHz,1V rms |
| Partial Discharge (10KV) | ≤5 pc |
| Operating Ambient Temperature | -25℃～+85℃ |
| Temperature Characteristics (Material) | YSU |
| Color | Blue |
Technical Description
- All electrical characteristics were measured at an ambient temperature of 25°C
- Duration of withstand voltage test：60s
- The insulation resistance is measured at the rated voltage and the charging time1min
- The temperature characteristics comply with the YSU material standards
- Avoid mechanical shock and use environments that exceed the rated temperature range
- The product complies with the RoHS environmental protection standard
- Service life: More than 5~10 years (under rated conditions)
- Storage conditions: Temperature -25°C to +85°C, relative humidity ≤75%
