K Series High Current Fast Recovery High Voltage Rectifier Diodes

No.K
Parameter optional range: (3~15KV; 1.0~5.0A; 75nS)
Trr:
75nS
Vr(Type):

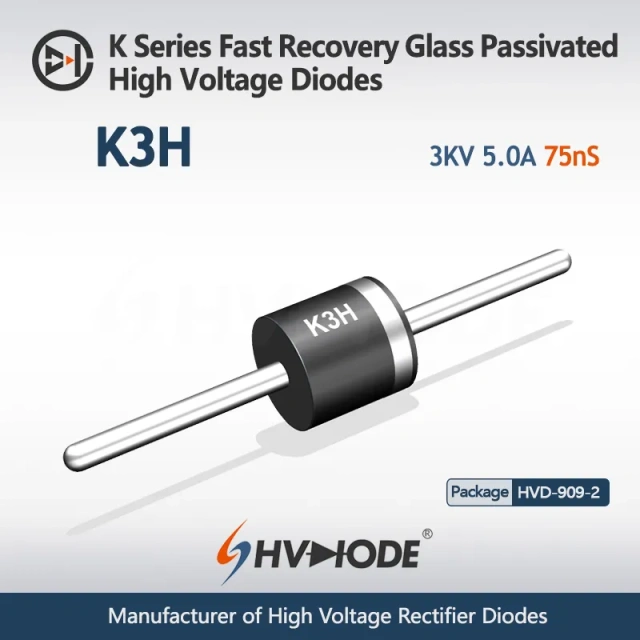

3KV(K3H)-5.0A
5KV(K5H)-3.0A
6KV(K6H)-2.5A

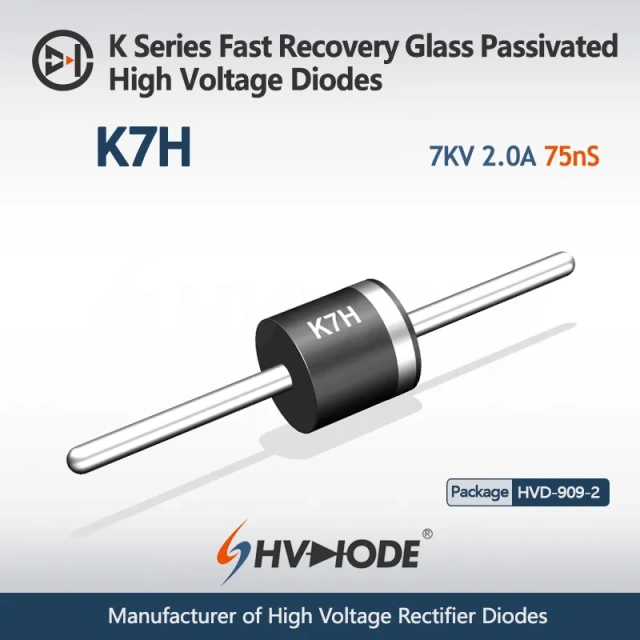

7KV(K7H)-2.0A
8KV(K8H)-2.0A
9KV(K9H)-1.5A
10KV(K10H)-1.5A
12KV(K12H)-1.2A
15KV(K15H)-1.0A
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes
  • K Series High Current Fast Recovery High Voltage Rectifier Diodes

Desciption

HVDIODE's K Series High Current Fast Recovery High Voltage Rectifier Diodes have an ultra-low power consumption design, which greatly improves the conversion efficiency of the rectifier circuit and performs well in high temperature environments.
It can provide a maximum capacity of 15KV 5000mA and a fast recovery time of 75nS.



 Products Main features

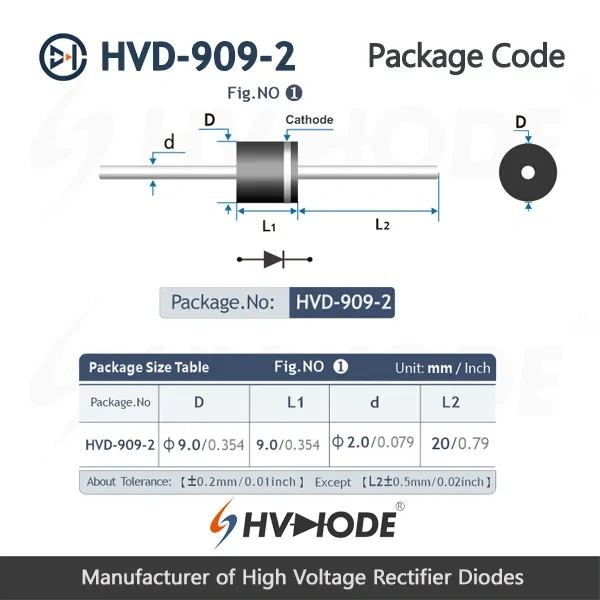

1、Axial leaded connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、Ultra thick leads reliably pass through high currents.
5、Special layered high-temperature chips ensure reliable product operation.

 Products Main Parameters
Parameter optional range: (3~15KV; 1.0~5.0A; 75nS)
Type Vrrm(KV) Io(A) Trr(nS) Ifsm(A) Vfm(V) Irrm1/Irrm2(uA)
K3H 3 5.0 75 200 4.5 2/20
K5H 5 3.0 75 150 7.5 2/20
K6H 6 2.5 75 125 9.0 2/20
K7H 7 2.0 75 100 10.0 2/20
K8H 8 2.0 75 100 12.0 2/20
K9H 9 1.5 75 75 13.5 2/20
K10H 10 1.5 75 75 15.0 2/20
K12H 12 1.2 75 60 18.0 2/20
K15H 15 1.0 75 50 22.0 2/20
For other parameter requirements, please contact our customer service. [email protected]

Applications

HVDIODE's K Series High Current Fast Recovery High Voltage Rectifier Diodes are widely used in many fields. In addition to medical equipment (such as X-ray machines, CT machines, nuclear magnetic resonance, etc.), power supplies (such as switching power supplies, inverter power supplies, power supply filter circuits, etc.), household appliances (such as TVs, refrigerators, washing machines, etc.), instruments, radars and other fields, there are also some other important applications.

1. Industrial control:
In industrial control systems, high-voltage diodes can be used to achieve high-precision current regulation and voltage stability to ensure the stable operation of industrial equipment.

2. Automotive electronics:
With the development of electric and intelligent automobiles, high-voltage diodes play an important role in automobile charging systems and electric vehicle drive systems. They are used to control current and voltage, improve energy utilization and equipment stability.

3. New energy equipment: In new energy equipment such as solar panels and wind turbines, high-voltage diodes are used to control current and voltage to improve energy conversion efficiency and equipment reliability.

4. Communication equipment: In some communication equipment, high-voltage diodes are also used in circuit protection and signal modulation to ensure the stability and transmission quality of communication signals.

5. Surge protection: High-voltage diodes can also be used in surge protection circuits to protect circuits from overvoltage and ensure the safety and stable operation of circuits.

6. High-voltage testing and testing: In high-voltage testing and testing equipment, high-voltage diodes are often used to generate high-voltage signals and perform circuit protection to ensure the accuracy of test results and the safety of equipment.

7. Military and aerospace: In the military and aerospace fields, high-voltage diodes are also widely used due to their excellent performance and reliability, such as radar systems, missile guidance systems, etc.

In summary, high-voltage diodes play an increasingly important role in the modern electronics industry due to their unique performance and wide application fields. With the continuous advancement of technology and the continuous expansion of application fields, the application prospects of high-voltage diodes will be broader.


Company Profile

In 2008, Anshan Suly Electronics Co., Ltd. began its journey as HVDIODE, with a clear mission: to revolutionize the world of semiconductor high-voltage rectifier components.

 Rooted in advanced technology and innovation, our company has grown from a visionary idea into a global leader in high-voltage application technology. At the core of our success is a commitment to research and development, fostering long-standing collaborations with universities, research institutions, and enterprises worldwide.

Our story is not just about manufacturing,it's about creating solutions that power progress.

 Upholding values of customer-centric service, integrity, and efficiency, we are proud to be an ISO9001 certified company, dedicated to quality and environmental responsibility.

 HVDIODE is more than a manufacturer; we are pioneers, shaping the future of high-voltage technology.






FAQ

Who Are We?
We are HVDIODE, a specialist in manufacturing semiconductor high-voltage rectifier components since 2008, known for our advanced technology and dedication to innovation.


How Can We Guarantee Quality?
Quality is assured through our ISO9001 certification and adherence to strict manufacturing standards, ensuring top-notch products and consistent performance.


What Can You Buy from Us?
Our products include a range of high-quality semiconductor high-voltage rectifier components, designed for various high-voltage applications.


Why Should You Buy from Us, Not from Other Suppliers?
Our unique combination of advanced technology, commitment to R&D, long-term industry partnerships, and customer-focused service sets us apart in the market.


What Services Can We Provide?
We offer comprehensive services including product customization, technical support, and dedicated customer service, ensuring a seamless experience for our clients.
