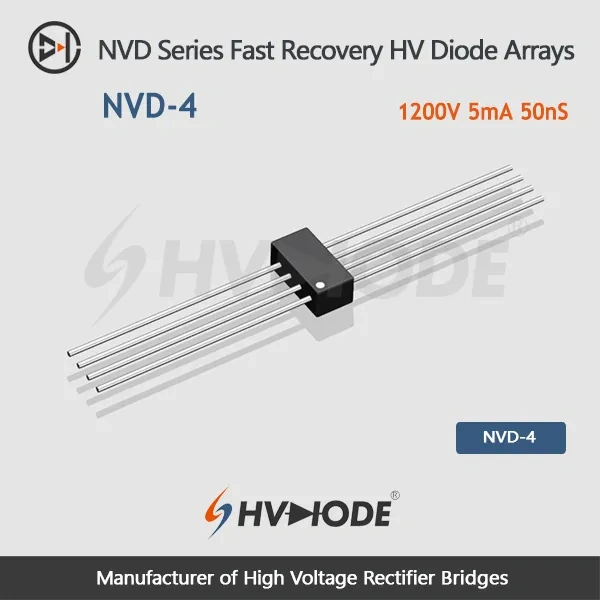

Name: NVD-4 Fast recovery high voltage diode arrays 1.2KV 5mA 50nS
Brand: HVDIODE - Suly Electronics Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Products Main features：
1、Axial leaded connection;
2、High thermal conductivity epoxy compound molding;
3、Special passivation glue chip protection;
4、Fast reverse recovery time for high efficiency;
5、Reverse leakage current is in the nanoampere range;
6、Ultra small size packaging.

The NVD-4 from HVDIODE is a high-performance fast recovery high voltage diode array designed for applications requiring rapid switching and high voltage handling. With a reverse recovery time of just 50ns and a peak reverse voltage of 1.2KV, it ensures efficient performance in high-frequency circuits. Its compact design and superior thermal management make it ideal for industrial, medical, and power supply applications.

GET A QUOTE

Desciption

NVD-4 Fast Recovery High Voltage Diode Arrays Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=1.0nA	1.2
Average Forward Current	If2(AV)	mA	Ta=25℃ In air	5
Average Forward Current	If2(AV)	mA	Ta=60℃ In oil	5
Backward Recovery Time	Trr	nS		50
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	0.5
Junction Temperature(MAX)	Ta	℃		-55～+125
Storage Temperature(MAX)	Tstg	℃		-55～+125
Forward Peak Voltage	Vfm	V		≥4.0
Backward Peak Current	Irrm1	nA	@ Ta=25℃ VRM=VRRM	1.0
Backward Peak Current	Irrm2	nA	@ Ta=60℃ VRM=VRRM	5.0
Absolute Maximum Ratings & Electrical Characteristics

High Voltage Capability for Diverse Applications
Engineered to withstand up to 1.2KV reverse voltage, the NVD-4 excels in applications demanding high voltage rectification. Its design ensures minimal leakage and reliable operation in high-stress environments.

Ultra-Fast Recovery Time Enhances Efficiency
Featuring a swift 50ns reverse recovery time, this diode minimizes switching losses, making it perfect for high-frequency high voltage rectifier circuits and improving overall system efficiency.

Superior Thermal Performance
Constructed with high thermal conductivity epoxy molding, the NVD-4 offers excellent heat dissipation. This ensures stable operation even under high current loads, enhancing the longevity of your high voltage diode rectifier systems.

Compact Design for Space-Constrained Applications
The NVD-4's ultra-small size packaging allows for integration into compact systems without compromising performance, making it suitable for high voltage bridge rectifier configurations and other space-sensitive applications.

Product Advantages

High Voltage Endurance for Demanding Applications
With a peak reverse voltage of 1.2KV, the NVD-4 is ideal for high voltage rectifier and extra high voltage diodes uses in industrial and power grid systems.

Ultra-Fast Switching Enhances Efficiency
A recovery time of just 50ns makes this diode suitable for high-speed rectifier high voltage operations, reducing power loss in ultra fast recovery diode high voltage environments.

Reliable Thermal Management
Manufactured with high thermal conductivity materials, it maintains excellent heat dissipation, ensuring durability in high current diodes DC voltage applications.

Compact Design for Versatile Integration
The NVD-4's ultra-small size packaging allows for seamless integration into various systems, including high voltage bridge rectifier configurations.

Environmental Stability and Longevity
Advanced passivation ensures performance stability over time, even under harsh conditions, making it a trusted choice for various high voltage diode rectifier and high voltage diodes for sale scenarios.

Enhance your high-voltage applications with the NVD-4. Contact HVDIODE today to request a quote or place your order.
