Home > All Collections > High Voltage Diodes > Surface Mount HV Diodes > PC3J SMD high voltage diode 3KV,300mA,75nS

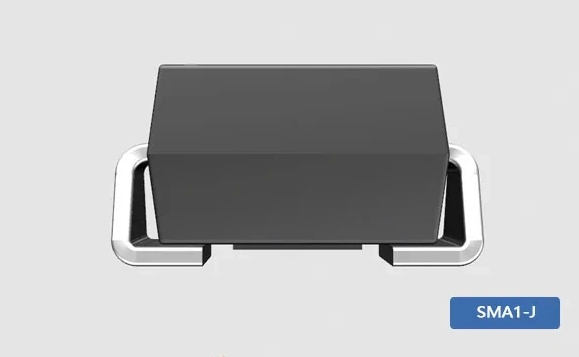

PC3J SMD high voltage diode 3KV,300mA,75nS

Name: PC3J SMD high voltage diode 3KV,300mA,75nS
Brand: HVDIODE - Suly Electronics Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Products Main features：
1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、J-Lead(Inner Bend) shapes.
5、Ultra small size package
6、Fast recovery PC Series are the same package size.

GET A QUOTE

Desciption
data sheet
SMD HVdiode
Installation Guide

PC3J SMD high voltage diode Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=1.0μA	3
Peak Working Backward Voltage	Vrwm	KV	Ta=25℃ Ir=1.0μA	3
Average Forward Current	If(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50℃	300
Backward Recovery Time	Trr	nS		75
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	10
Operating Ambient Temperature	Ta	℃		-55～+175
Storage Temperature	Tstg	℃		-55～+150
Forward Peak Voltage	Vfm	V		≥2.5
Backward Peak Current	Irrm1	μA	@ Ta=25℃ VRM=VRRM	1.0
Backward Peak Current	Irrm2	μA	@ Ta=100℃ VRM=VRRM	20.0
Absolute Maximum Ratings & Electrical Characteristics

Unmatched Efficiency and Reliability
The PC3J SMD high voltage diode from HVDIODE's PC Series is engineered to redefine efficiency in industrial applications. With a robust design that supports a Surface Mount High Voltage Diode configuration, this diode ensures seamless integration into your PCB High Voltage diode setups. Its fast recovery time of 75nS is pivotal for high-speed operations, making it a top choice for those seeking Fast recovery High Voltage diode solutions. The high thermal conductivity epoxy compound molding enhances heat dissipation, ensuring the diode remains cool under pressure, thus prolonging its lifespan and maintaining optimal performance. This High Voltage Rectifier is not just a component; it's a commitment to reliability and efficiency, ideal for bulk orders and professional use.

Precision in Performance
Built with precision, the PC3J SMD high voltage diode offers unparalleled performance in demanding environments. Its J-Lead (Inner Bend) shapes provide a compact and efficient design, perfect for High Voltage assembly applications. The ultra-small size package allows for easy integration into various systems, ensuring that your High current high voltage diode needs are met without compromising on space or efficiency. The diode's ability to handle a peak working backward voltage of 3KV and an average forward current of 300mA makes it a powerhouse in High power high voltage diode applications. Whether used in insulating oils or gases, this diode guarantees stability and performance, making it a reliable choice for engineers and designers.

Scalable Design for Future Needs
The PC3J SMD high voltage diode is not just about meeting today's demands; it's about anticipating tomorrow's challenges. Its scalable design ensures adaptability across various applications, from Ultra-fast recovery High Voltage diode setups to complex HV diode configurations. The diode's compatibility with secondary packaging and exposed air use, coupled with its ability to add air cooling, makes it a versatile component in High Voltage Diodes systems. Engineers can select suitable insulation adhesive materials based on specific usage scenarios, ensuring that the diode remains a reliable part of any High Voltage Rectifier assembly. With its robust construction and adaptable design, the PC3J diode is poised to meet growing demands, offering a future-proof solution for industrial applications.

This comprehensive description ensures that the PC3J SMD high voltage diode is positioned as a leading choice for those seeking efficiency, precision, and scalability in their high voltage applications.

Product Advantages

1. Unmatched Efficiency and Reliability
The PC3J SMD high voltage diode from HVDIODE's PC Series is engineered for superior efficiency in industrial applications. Its Surface Mount High Voltage Diode design ensures seamless integration into PCB High Voltage diode setups. With a Fast recovery High Voltage diode time of 75nS, it supports high-speed operations, making it ideal for bulk orders and professional use. The high thermal conductivity epoxy compound enhances heat dissipation, ensuring the diode remains cool under pressure, thus prolonging its lifespan.

2. Precision in Performance
Built with precision, the PC3J SMD high voltage diode offers unparalleled performance in demanding environments. Its J-Lead (Inner Bend) shapes provide a compact design, perfect for High Voltage assembly applications. The ultra-small size package allows for easy integration into various systems, ensuring that your High current high voltage diode needs are met without compromising on space or efficiency. It handles a peak working backward voltage of 3KV and an average forward current of 300mA.

3. Scalable Design for Future Needs
The PC3J SMD high voltage diode is designed to meet today's demands and anticipate tomorrow's challenges. Its scalable design ensures adaptability across various applications, from Ultra-fast recovery High Voltage diode setups to complex HV diode configurations. The diode's compatibility with secondary packaging and exposed air use, coupled with its ability to add air cooling, makes it a versatile component in High Voltage Diodes systems.

4. Versatile Application Compatibility
Whether used in insulating oils or gases, the PC3J SMD high voltage diode guarantees stability and performance. This High Voltage Rectifier is a reliable choice for engineers and designers, offering compatibility with various insulation adhesive materials based on specific usage scenarios. Its robust construction ensures it remains a reliable part of any High Voltage Rectifier assembly, making it a future-proof solution for industrial applications.

5. Cost-Effective Bulk Ordering
Ideal for bulk orders, the PC3J SMD high voltage diode offers a cost-effective solution for industrial applications. Its efficient design and reliable performance reduce downtime and maintenance costs, providing a high return on investment. The diode's ability to handle high power and current demands makes it a powerhouse in High power high voltage diode applications, ensuring long-term reliability and efficiency.

Usage Scenarios

Scenario 1: Industrial Automation Systems
In high-speed industrial automation, the PC3J SMD high voltage diode is crucial for efficient power conversion. Its Fast recovery High Voltage diode capability ensures rapid switching, reducing downtime and enhancing productivity. The Surface Mount High Voltage Diode design allows seamless integration into compact PCB High Voltage diode setups, optimizing space and performance.

Scenario 2: Power Supply Units
For manufacturers of power supply units, the PC3J SMD high voltage diode offers unmatched reliability. Its High Voltage Rectifier function ensures stable power conversion, vital for maintaining consistent output. The High current high voltage diode feature supports high load demands, making it ideal for bulk orders in professional settings.

Scenario 3: Renewable Energy Systems
In solar and wind energy systems, the PC3J SMD high voltage diode plays a pivotal role in converting DC to AC efficiently. Its Ultra-fast recovery High Voltage diode capability minimizes energy loss, enhancing system efficiency. The High power high voltage diode design ensures durability under varying environmental conditions.

Scenario 4: Medical Equipment
Medical equipment manufacturers rely on the PC3J SMD high voltage diode for precision and reliability. Its High Voltage assembly design supports compact configurations, crucial for space-constrained devices. The HV diode ensures stable performance, reducing the risk of equipment failure during critical operations.

Scenario 5: Telecommunications Infrastructure
In telecommunications, the PC3J SMD high voltage diode is essential for maintaining signal integrity. Its Surface Mount High Voltage Diode configuration supports high-frequency applications, ensuring clear communication. The Fast recovery High Voltage diode feature enhances signal processing speed, vital for modern telecom networks.

About Us

HVDIODE is a leading innovator in the high voltage diode industry, committed to delivering top-tier solutions for industrial applications. Our PC Series, including the PC3J SMD high voltage diode, exemplifies our dedication to efficiency and reliability. Designed with a robust surface mount configuration, our diodes integrate seamlessly into PCB setups, offering fast recovery times and high thermal conductivity. This ensures optimal performance and durability, making them ideal for bulk orders and professional use. At HVDIODE, we prioritize precision in performance, crafting components that excel in demanding environments. Our J-Lead designs and ultra-small packages facilitate easy integration without sacrificing space or efficiency. With the capability to handle high voltages and currents, our diodes are perfect for high power applications, providing stability whether used in insulating oils or gases. We anticipate future needs with scalable designs adaptable to various applications, from ultra-fast recovery setups to complex configurations. Our commitment to quality and innovation positions HVDIODE as a trusted partner for engineers and designers seeking reliable, efficient, and future-proof solutions in high voltage applications.

Contact HVDIODE today to upgrade your industrial applications with the PC3J SMD high voltage diode's unmatched efficiency and reliability. Let’s enhance your operational performance!

FAQ

Who are we?
We are HVDIODE, a leading provider of high voltage diodes, specializing in products designed for industrial applications. Our PC Series, including the PC3J SMD high voltage diode, is renowned for its efficiency and reliability.

How can we guarantee quality?
We ensure quality through rigorous testing and adherence to industry standards. Our diodes are crafted with high thermal conductivity materials and fast recovery times, ensuring they meet the demands of high-speed operations and industrial reliability.

What can you buy from us?
You can purchase a wide range of high voltage diodes, including surface mount high voltage diodes, fast recovery diodes, and high power diodes. Our products are designed to integrate seamlessly into various high voltage applications.

Why should you buy from us not from other suppliers?
Our diodes are engineered for unmatched efficiency and reliability, making them ideal for demanding industrial applications. We offer robust designs that ensure seamless integration and long-lasting performance, backed by our commitment to quality and customer satisfaction.

What services can we provide?
We provide expert consultation to help you select the right diodes for your applications, along with technical support and guidance on installation and usage. Our services are tailored to ensure optimal performance and satisfaction.

Can I customize this product for my business?
Yes, we offer customization options to meet specific business needs. Our team can work with you to tailor the PC3J SMD high voltage diode to fit your unique application requirements, ensuring optimal performance and integration.

Do you offer wholesale pricing?
Yes, we provide competitive wholesale pricing for bulk orders. Our PC3J SMD high voltage diode is ideal for large-scale industrial applications, and we are committed to offering cost-effective solutions for our clients.

PC series SMD high voltage diodes, due to the design of inner bend angle.

During use, according to the actual working voltage level, it is necessary to pay attention to the insulation distance of the medium.

If it is used completely exposed to the air, it is recommended to fill the two poles with insulating materials, or immerse in three-proof paint, which will achieve more reliable insulation.

Of course, this will also affect the heat dissipation performance of the SMD high voltage diode.

Therefore, according to the temperature rise, there are different solutions for selecting insulating glue with suitable insulation and thermal conductivity.

Of course, this solution is not necessary, you just need to consider this aspect in your design plan.
In most cases, the working medium of insulating oil and insulating gas does not need to consider this kind of solution.

The selection of high-voltage diodes is closely related to their usage environment。

1. Used in insulating oil. (Recommended)
2. Used in insulating gases. (Recommended)
3. Secondary packaging use. (High requirements for heat dissipation and other parameter performance of components)
4. Use in exposed air or add air cooling. (If the size of the high-voltage diode is small, it is easy to discharge, and the heat dissipation performance is average.)

For high-voltage diodes used in exposed air, it is recommended to install them with insulated electrodes at both ends.

Common treatment methods for surface adhesive insulation:

Characteristics of insulation adhesive material:

1. Silicone material usually presents a transparent and elastic rubber state after curing, which is more effective in shock resistance and can also withstand severe stress changes caused by large high and low temperature changes (-40 ° C~200 ° C).

2. Acrylic materials typically exhibit a transparent and hard coating after curing, with low moisture absorption and fast curing time, as well as excellent wear resistance and insulation.

3. After curing, Urethane material usually presents a transparent and hard coating, which has superior wear resistance and good moisture resistance. Its performance is particularly stable in low temperature environments, but it is less resistant to high temperatures.

4. The coating material based on epoxy is very sturdy and usually opaque, with good moisture and moisture resistance. Its resistance to chemical corrosion and wear is also very good. In addition, epoxy also has good dielectric properties.

Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.
