Home > All Collections > High Voltage Diodes > Surface Mount HV Diodes > PC5S SMD high voltage diode 5KV,800mA,75nS

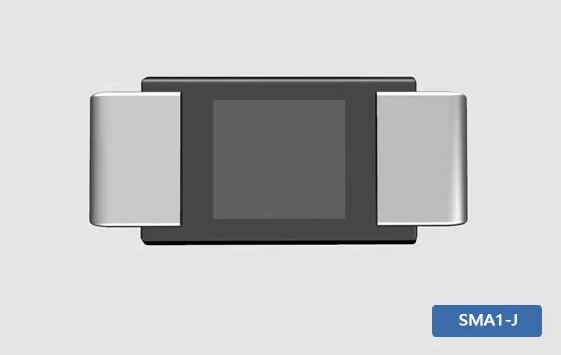

PC5S SMD high voltage diode 5KV,800mA,75nS

Name: PC5S SMD high voltage diode 5KV,800mA,75nS
Brand: HVDIODE - Suly Electronics Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Products Main features：
1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、J-Lead(Inner Bend) shapes.
5、Ultra small size package
6、Fast recovery PC Series are the same package size.

GET A QUOTE Download

Desciption
data sheet
SMD HVdiode
Installation Guide

PC5S SMD high voltage diode Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=1.0μA	5
Peak Working Backward Voltage	Vrwm	KV	Ta=25℃ Ir=1.0μA	5
Average Forward Current	If(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50℃	800
Backward Recovery Time	Trr	nS		75
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	10
Operating Ambient Temperature	Ta	℃		-55～+175
Storage Temperature	Tstg	℃		-55～+150
Forward Peak Voltage	Vfm	V		≥5.0
Backward Peak Current	Irrm1	μA	@ Ta=25℃ VRM=VRRM	1.0
Backward Peak Current	Irrm2	μA	@ Ta=100℃ VRM=VRRM	20.0
Absolute Maximum Ratings & Electrical Characteristics

Enhanced Efficiency with Fast Recovery
The PC5S SMD high voltage diode is engineered to redefine efficiency in high-demand applications. With its fast recovery High Voltage diode capabilities, this component ensures minimal downtime and maximized operational efficiency. The Surface Mount High Voltage Diode design allows for seamless integration into PCB High Voltage diode assemblies, making it an ideal choice for industrial systems that require reliable and consistent performance. Its high thermal conductivity ensures that heat dissipation is managed effectively, preventing overheating and extending the lifespan of the diode. This HV diode is perfect for applications where fast recovery High Voltage diodes are crucial, providing a robust solution for maintaining system integrity and performance.

Precision and Performance in Compact Design
Built for precision, the PC5S SMD high voltage diode offers unparalleled performance in a compact package. Its Ultra-fast recovery High Voltage diode feature is designed to handle high currents efficiently, making it a vital component in High Voltage Rectifier systems. The J-Lead (Inner Bend) shapes enhance its mechanical stability, ensuring that it withstands the rigors of demanding environments. This High current high voltage diode is crafted with a focus on quality and durability, ensuring that it meets the high standards required for High Voltage assembly applications. The PC Series maintains a consistent package size, allowing for easy upgrades and replacements without the need for extensive redesigns.

Scalable Solutions for Future Growth
The PC5S SMD high voltage diode is not just a component; it's a scalable solution designed to meet the growing demands of modern industries. Its high power high voltage diode capabilities make it suitable for a wide range of applications, from High Voltage Rectifier assemblies to High Voltage assembly projects. The diode's design allows for easy scalability, ensuring that as your system requirements grow, the PC5S can adapt without compromising performance. This HV diode is engineered to provide long-term value, making it a smart investment for businesses looking to future-proof their operations. With its Ultra-fast recovery High Voltage diode feature, it ensures that your systems remain efficient and reliable, even as demands increase.

Incorporating the PC5S SMD high voltage diode into your systems means choosing a component that offers efficiency, precision, and scalability, all while maintaining the highest standards of performance and reliability.

Product Advantages

1. Enhanced Efficiency with Fast Recovery
The PC5S SMD high voltage diode is designed to optimize operational efficiency in demanding industrial applications. Its fast recovery High Voltage diode feature minimizes downtime, ensuring continuous performance. The Surface Mount High Voltage Diode design facilitates seamless integration into PCB High Voltage diode assemblies, enhancing system reliability and efficiency. With high thermal conductivity, it effectively manages heat dissipation, preventing overheating and extending the diode's lifespan. This HV diode is essential for maintaining system integrity in environments where fast recovery High Voltage diodes are critical.

2. Precision and Performance in Compact Design
The PC5S SMD high voltage diode offers exceptional performance in a compact form factor. Its Ultra-fast recovery High Voltage diode capability efficiently handles high currents, making it indispensable in High Voltage Rectifier systems. The J-Lead (Inner Bend) shapes provide mechanical stability, ensuring durability in challenging conditions. As a High current high voltage diode, it meets stringent quality standards required for High Voltage assembly applications. The consistent package size of the PC Series allows for straightforward upgrades and replacements, reducing redesign efforts.

3. Scalable Solutions for Future Growth
The PC5S SMD high voltage diode is engineered for scalability, accommodating the evolving needs of modern industries. Its high power high voltage diode capabilities make it versatile for various applications, including High Voltage Rectifier and High Voltage assembly projects. The design supports easy scalability, ensuring the PC5S adapts to growing system demands without sacrificing performance. This HV diode offers long-term value, making it a strategic investment for businesses aiming to future-proof operations. The Ultra-fast recovery High Voltage diode feature guarantees efficiency and reliability as requirements increase.

4. Durability and Integration
The PC5S SMD high voltage diode is crafted for durability and easy integration into complex systems. Its Surface Mount High Voltage Diode design simplifies installation in PCB High Voltage diode configurations, enhancing system robustness. The high thermal conductivity ensures effective heat management, crucial for maintaining performance in high-demand environments. This HV diode is ideal for applications requiring fast recovery High Voltage diodes, providing a reliable solution for sustaining system functionality and preventing disruptions.

5. Cost-Effective Performance
Investing in the PC5S SMD high voltage diode ensures cost-effective performance with its Ultra-fast recovery High Voltage diode capabilities. The High current high voltage diode design supports efficient current handling, reducing energy consumption and operational costs. Its compact size and consistent package across the PC Series facilitate easy integration and upgrades, minimizing redesign expenses. This high power high voltage diode offers a balance of efficiency and reliability, making it a valuable addition to any High Voltage assembly or High Voltage Rectifier system.

Usage Scenarios

Scenario 1: Industrial Automation Efficiency
In a high-demand industrial automation setting, the PC5S SMD high voltage diode is crucial for maintaining operational efficiency. Its fast recovery High Voltage diode capabilities minimize downtime, ensuring seamless production processes. The Surface Mount High Voltage Diode design allows easy integration into existing PCB High Voltage diode assemblies, enhancing system reliability and performance.

Scenario 2: High Voltage Rectifier Systems
For companies specializing in High Voltage Rectifier systems, the PC5S SMD high voltage diode offers unmatched precision. Its Ultra-fast recovery High Voltage diode feature efficiently handles high currents, making it indispensable for systems requiring consistent performance. The J-Lead (Inner Bend) shapes provide mechanical stability, crucial for demanding environments.

Scenario 3: Scalable High Voltage Assemblies
In projects involving High Voltage assembly, the PC5S SMD high voltage diode provides a scalable solution. Its high power high voltage diode capabilities support a wide range of applications, allowing businesses to expand without redesigning systems. This adaptability ensures long-term value and reliability.

Scenario 4: High Current Applications
In high current applications, the PC5S SMD high voltage diode excels with its High current high voltage diode design. Its compact size and high thermal conductivity manage heat dissipation effectively, preventing overheating and extending the diode's lifespan. This makes it ideal for environments where durability is key.

Scenario 5: Future-Proofing Industrial Systems
For industries looking to future-proof their operations, the PC5S SMD high voltage diode is a smart investment. Its Ultra-fast recovery High Voltage diode feature ensures systems remain efficient and reliable as demands increase. The consistent package size of the PC Series allows for easy upgrades, supporting growth without compromising performance.

About Us

HVDIODE is a leading provider of high-performance diodes, specializing in the development of advanced solutions for industrial applications. Our PC Series, including the PC5S SMD high voltage diode, is designed to meet the rigorous demands of modern industries, offering fast recovery times and high thermal conductivity. With a focus on precision and durability, our products ensure seamless integration into various systems, enhancing both efficiency and reliability. At HVDIODE, we are committed to delivering scalable solutions that support future growth, making us a trusted partner for businesses looking to optimize their operations. Our dedication to quality and innovation drives us to continuously improve our offerings, ensuring that our clients receive components that meet the highest standards of performance. Explore our range of high voltage diodes and discover how HVDIODE can support your industrial needs with cutting-edge technology and exceptional service.

Contact HVDIODE today to upgrade your industrial systems with the PC5S SMD high voltage diode's fast recovery and high thermal conductivity. Let’s enhance your operational efficiency!

FAQ

Who are we?
We are HVDIODE, a leading provider of high-performance high voltage diodes, specializing in innovative solutions for industrial applications. Our products are designed to meet the demanding needs of modern industries, ensuring efficiency and reliability.

How can we guarantee quality?
We guarantee quality through rigorous testing and adherence to high manufacturing standards. Our diodes are crafted with precision and durability in mind, ensuring they meet the stringent requirements of industrial applications.

What can you buy from us?
You can purchase a wide range of high voltage diodes, including surface mount high voltage diodes, fast recovery diodes, and ultra-fast recovery diodes. Our products are designed for seamless integration into various systems, enhancing performance and efficiency.

Why should you buy from us not from other suppliers?
Our diodes offer unmatched efficiency and reliability, with features like fast recovery time and high thermal conductivity. Our compact designs ensure easy integration, making us the preferred choice for industries seeking durable and efficient solutions.

What services can we provide?
We provide comprehensive support, including product customization, technical assistance, and fast delivery services. Our team is dedicated to ensuring you receive the best solutions tailored to your specific needs.

Can I customize this product for my business?
Yes, we offer customization options to meet your specific business requirements. Our team works closely with you to tailor our high voltage diodes to fit your unique applications and operational needs.

How fast can I receive my order?
We prioritize efficient processing and shipping to ensure you receive your order promptly. Delivery times may vary based on location and order size, but we strive to meet your timeline requirements effectively.

PC series SMD high voltage diodes, due to the design of inner bend angle.

During use, according to the actual working voltage level, it is necessary to pay attention to the insulation distance of the medium.

If it is used completely exposed to the air, it is recommended to fill the two poles with insulating materials, or immerse in three-proof paint, which will achieve more reliable insulation.

Of course, this will also affect the heat dissipation performance of the SMD high voltage diode.

Therefore, according to the temperature rise, there are different solutions for selecting insulating glue with suitable insulation and thermal conductivity.

Of course, this solution is not necessary, you just need to consider this aspect in your design plan.
In most cases, the working medium of insulating oil and insulating gas does not need to consider this kind of solution.

The selection of high-voltage diodes is closely related to their usage environment。

1. Used in insulating oil. (Recommended)
2. Used in insulating gases. (Recommended)
3. Secondary packaging use. (High requirements for heat dissipation and other parameter performance of components)
4. Use in exposed air or add air cooling. (If the size of the high-voltage diode is small, it is easy to discharge, and the heat dissipation performance is average.)

For high-voltage diodes used in exposed air, it is recommended to install them with insulated electrodes at both ends.

Common treatment methods for surface adhesive insulation:

Characteristics of insulation adhesive material:

1. Silicone material usually presents a transparent and elastic rubber state after curing, which is more effective in shock resistance and can also withstand severe stress changes caused by large high and low temperature changes (-40 ° C~200 ° C).

2. Acrylic materials typically exhibit a transparent and hard coating after curing, with low moisture absorption and fast curing time, as well as excellent wear resistance and insulation.

3. After curing, Urethane material usually presents a transparent and hard coating, which has superior wear resistance and good moisture resistance. Its performance is particularly stable in low temperature environments, but it is less resistant to high temperatures.

4. The coating material based on epoxy is very sturdy and usually opaque, with good moisture and moisture resistance. Its resistance to chemical corrosion and wear is also very good. In addition, epoxy also has good dielectric properties.

Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.

Expects To Provide You With Perfect Service

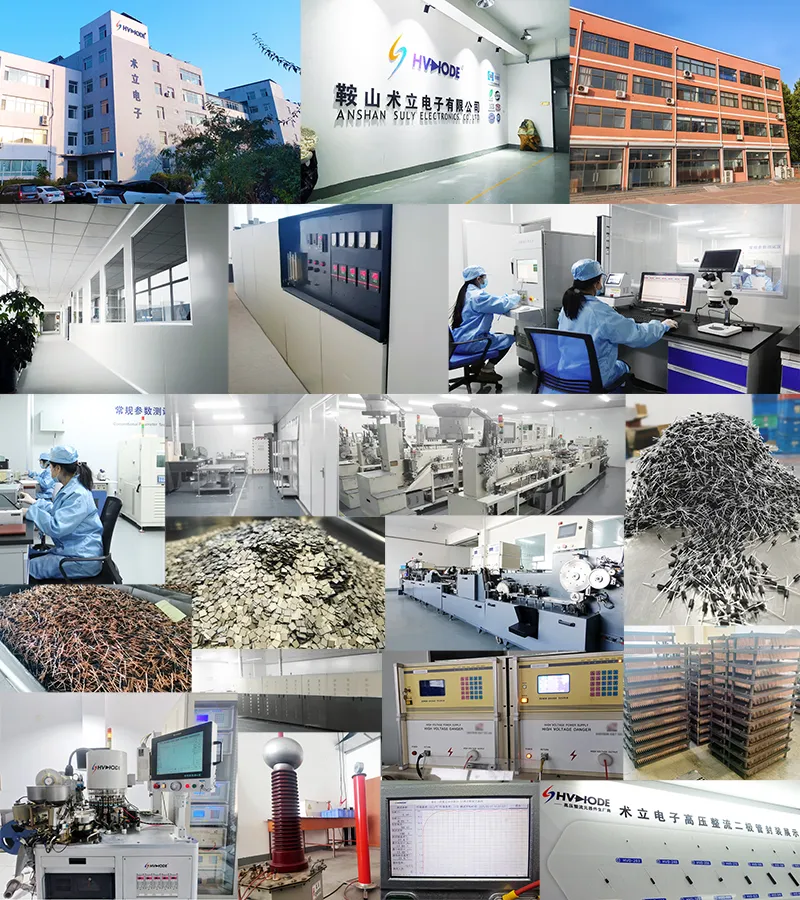

HVDIODE: Since 2008, Anshan Suly Electronics Co., Ltd. (HVDIODE) has specialized in semiconductor high-voltage rectifier components. With advanced technology and rich industry experience, we provide high-quality products and services to global universities, research institutions, and enterprises, earning long-term trust.
