Home > All Collections > High Voltage Diodes > Surface Mount HV Diodes > PE25G SMD high voltage diode 25KV,150mA, 75nS

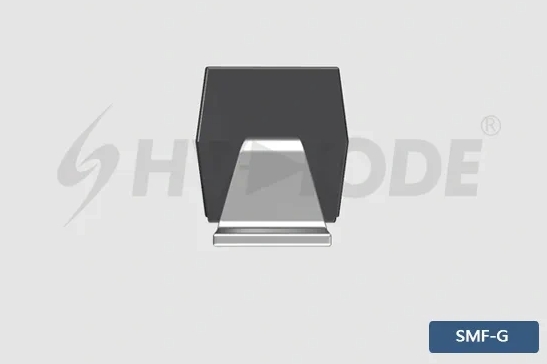

PE25G SMD high voltage diode 25KV,150mA, 75nS

Name: PE25G SMD high voltage diode 25KV,150mA, 75nS
Brand: HVDIODE - Suly Electronics Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Products Main features：
1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、J-Lead(Inner Bend) shapes.
5、Ultra small size package
6、Fast recovery PF Series are the same package size.

GET A QUOTE

Desciption

PE25G SMD high voltage diode Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=1.0μA	25
Peak Working Backward Voltage	Vrwm	KV	Ta=25℃ Ir=1.0μA	25
Average Forward Current	If(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50℃	150
Backward Recovery Time	Trr	nS		75
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	10
Operating Ambient Temperature	Ta	℃		-40～+150
Storage Temperature	Tstg	℃		-40～+120
Forward Peak Voltage	Vfm	V		≥16.5
Backward Peak Current	Irrm1	μA	@ Ta=25℃ VRM=VRRM	1.0
Backward Peak Current	Irrm2	μA	@ Ta=100℃ VRM=VRRM	20.0
Absolute Maximum Ratings & Electrical Characteristics

Unmatched Efficiency and Integration
The PE25G SMD high voltage diode is engineered to redefine efficiency in industrial applications. With a fast recovery High Voltage diode capability, it ensures rapid response times, minimizing downtime and maximizing productivity. This Surface Mount High Voltage Diode is crafted with high thermal conductivity epoxy compound molding, providing superior heat dissipation and reliability. Its ultra-small package design facilitates seamless integration into PCB High Voltage diode configurations, making it an ideal choice for compact and efficient High Voltage assemblies. The SMD connection enhances compatibility, ensuring that this HV diode fits effortlessly into existing systems, offering a streamlined solution for high-demand environments.

Precision and Performance at Its Core
Built for precision, the PE25G SMD high voltage diode delivers exceptional performance with its Ultra-fast recovery High Voltage diode feature. The J-Lead (Inner Bend) shapes contribute to its robust design, ensuring stability and durability in high-stress conditions. This High current high voltage diode supports an average forward current of 150mA, making it suitable for applications requiring consistent power delivery. The High Voltage Rectifier capabilities of this diode ensure efficient conversion and regulation of electrical currents, providing reliable performance across various industrial settings. Its High power high voltage diode attributes make it a powerhouse component, capable of handling demanding tasks with ease.

Scalable Design for Future Growth
The PE25G SMD high voltage diode is designed with scalability in mind, ready to meet the growing demands of modern industries. Its Fast recovery High Voltage diode technology ensures adaptability to evolving requirements, making it a future-proof investment. The diode's ability to operate within a wide ambient temperature range (-40 to +150℃) underscores its versatility and resilience, suitable for diverse environments. As part of the HVDIODE PE-Series, this Surface Mount High Voltage Diode aligns with industry standards, ensuring compatibility with other components in High Voltage assemblies. Whether you're expanding existing systems or developing new projects, this HV diode offers the reliability and performance needed to support long-term growth and innovation.

With the PE25G SMD high voltage diode, you're not just investing in a component; you're choosing a solution that integrates seamlessly, performs reliably, and scales effortlessly to meet future challenges.

Product Advantages

1. Unmatched Efficiency and Integration
The PE25G SMD high voltage diode is a game-changer for industrial applications, offering a fast recovery High Voltage diode capability that minimizes downtime and maximizes productivity. Its Surface Mount High Voltage Diode design ensures seamless integration into PCB High Voltage diode configurations, making it ideal for compact High Voltage assemblies. The SMD connection enhances compatibility, providing a streamlined solution for high-demand environments.

2. Precision and Performance at Its Core
Built for precision, the PE25G SMD high voltage diode excels with its Ultra-fast recovery High Voltage diode feature. The robust J-Lead (Inner Bend) shapes ensure stability and durability in high-stress conditions. This High current high voltage diode supports an average forward current of 150mA, making it suitable for applications requiring consistent power delivery. Its High Voltage Rectifier capabilities ensure efficient conversion and regulation of electrical currents.

3. Superior Thermal Management
The PE25G SMD high voltage diode is crafted with high thermal conductivity epoxy compound molding, providing superior heat dissipation and reliability. This feature ensures that the HV diode maintains optimal performance even in high-temperature environments, making it a reliable choice for High Voltage assemblies that demand consistent thermal management.

4. Scalable Design for Future Growth
Designed with scalability in mind, the PE25G SMD high voltage diode is ready to meet the growing demands of modern industries. Its Fast recovery High Voltage diode technology ensures adaptability to evolving requirements, making it a future-proof investment. The diode's ability to operate within a wide ambient temperature range underscores its versatility and resilience.

5. Compact and Efficient Solution
The ultra-small package of the PE25G SMD high voltage diode facilitates easy integration into existing systems, offering a compact and efficient solution for High Voltage assemblies. This High power high voltage diode is part of the HVDIODE PE-Series, aligning with industry standards to ensure compatibility with other components, supporting long-term growth and innovation.

Usage Scenarios

Industrial Automation Efficiency
In a high-demand manufacturing plant, the need for efficient power conversion is critical. The PE25G SMD high voltage diode excels in this environment by providing fast recovery High Voltage diode capabilities, ensuring minimal downtime. Its Surface Mount High Voltage Diode design allows for seamless integration into existing High Voltage assemblies, enhancing productivity and reducing operational costs.

Compact Power Solutions for Robotics
Robotics applications require components that are both powerful and compact. The PE25G SMD high voltage diode offers an Ultra-fast recovery High Voltage diode feature, making it ideal for robotic systems that demand quick response times. Its small package and high thermal conductivity ensure that it fits into tight spaces while maintaining optimal performance.

Reliable Power in Medical Equipment
Medical devices require precise and reliable power management. The High Voltage Rectifier capabilities of the PE25G SMD high voltage diode ensure efficient current regulation, crucial for sensitive medical equipment. Its High current high voltage diode design supports consistent power delivery, enhancing device reliability and patient safety.

Telecommunications Infrastructure
In telecommunications, maintaining uninterrupted service is paramount. The PE25G SMD high voltage diode supports High power high voltage diode applications, ensuring robust performance in telecom infrastructure. Its PCB High Voltage diode compatibility allows for easy integration into existing systems, supporting scalable network expansions.

Energy Sector Innovations
For renewable energy systems, efficient power conversion is essential. The PE25G SMD high voltage diode provides a Fast recovery High Voltage diode solution, optimizing energy conversion processes. Its ability to operate across a wide temperature range makes it suitable for diverse environmental conditions, supporting sustainable energy initiatives.

About Us

HVDIODE is a leading provider of high voltage diode solutions, dedicated to enhancing industrial efficiency through innovative technology. Our PE-Series, including the PE25G SMD high voltage diode, exemplifies our commitment to delivering unmatched performance and integration. With a focus on fast recovery times and high thermal conductivity, our products are designed to meet the rigorous demands of modern industries. Our ultra-small package designs ensure seamless integration into PCB configurations, making them ideal for compact and efficient high voltage assemblies. At HVDIODE, we prioritize reliability and scalability, offering components that adapt to evolving requirements and support long-term growth. Our diodes operate within a wide ambient temperature range, ensuring versatility and resilience across diverse environments. As part of our mission, we align with industry standards to guarantee compatibility and ease of integration. Choose HVDIODE for solutions that not only meet current needs but also anticipate future challenges, providing a foundation for innovation and expansion.

Contact HVDIODE today to upgrade your industrial applications with the PE25G SMD high voltage diode's fast recovery time and high thermal conductivity. Let’s maximize productivity and efficiency!

FAQ

Who are we?
We are HVDIODE, a leading provider of high voltage diodes and related components, specializing in efficient and compact solutions for industrial applications. Our PE-Series, including the PE25G SMD high voltage diode, is designed to meet the demands of modern industries with unmatched efficiency and integration.

How can we guarantee quality?
We guarantee quality through rigorous testing and adherence to industry standards. Our products, including the PE25G SMD high voltage diode, are crafted with high thermal conductivity materials and undergo thorough quality checks to ensure reliability and performance in high-stress conditions.

What can you buy from us?
You can purchase a wide range of high voltage diodes, including surface mount and fast recovery options, as well as high voltage rectifiers and assemblies. Our PE25G SMD high voltage diode is ideal for applications requiring fast recovery time and high thermal conductivity.

Why should you buy from us not from other suppliers?
Choosing HVDIODE means investing in a future-proof solution that integrates seamlessly into existing systems. Our PE25G SMD high voltage diode offers superior performance, rapid response times, and scalability, making it a reliable choice for long-term growth and innovation.

What services can we provide?
We offer comprehensive support, including technical assistance and customization options to meet specific industrial needs. Our team is dedicated to ensuring seamless integration and optimal performance of our high voltage diodes in your applications.

Can I customize this product for my business?
Yes, we offer customization options for the PE25G SMD high voltage diode to suit your specific business requirements. Our team can assist in tailoring the diode's specifications to ensure optimal performance in your unique applications.

How fast can I receive my order?
We strive to deliver your order promptly, with standard shipping options available. For urgent requirements, expedited shipping can be arranged to ensure you receive the PE25G SMD high voltage diode as quickly as possible.
