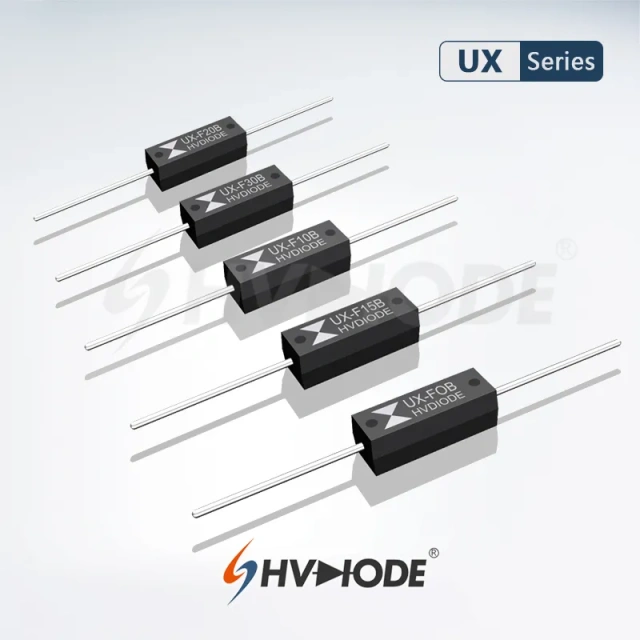

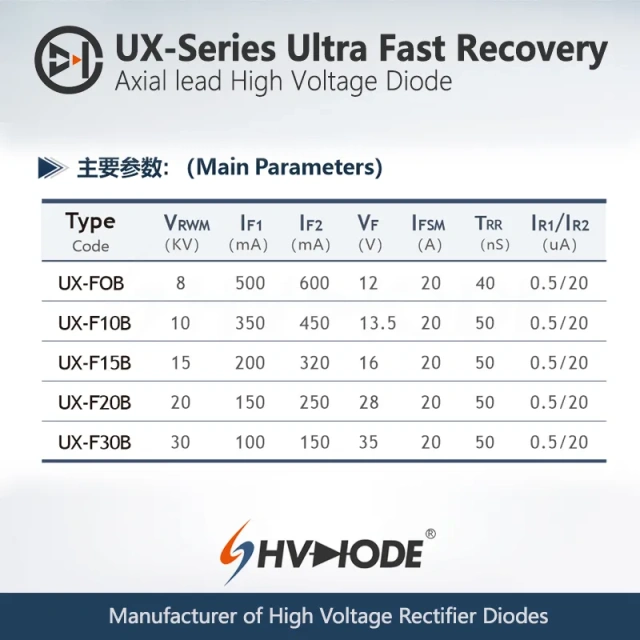

UX-Series Ultra Fast Recovery High-Voltage Diode(8-30KV；100~500mA；40-50nS)| Type (Code) |
VRWM (KV) |
IF1 (mA) |
IF2 (mA) |
VF (V) |
IFSM (A) |
TRR (nS) |
IR1/IR2 (uA) |
|---|---|---|---|---|---|---|---|
| UX-FOB | 8 | 500 | 600 | 12 | 20 | 40 | 0.5/20 |
| UX-F10B | 10 | 350 | 450 | 13.5 | 20 | 50 | 0.5/20 |
| UX-F15B | 15 | 200 | 320 | 16 | 20 | 50 | 0.5/20 |
| UX-F20B | 20 | 150 | 250 | 28 | 20 | 50 | 0.5/20 |
| UX-F30B | 30 | 100 | 150 | 35 | 20 | 50 | 0.5/20 |
