Home > All Collections > High Voltage Diodes > Surface Mount HV Diodes > PF25F SMD high voltage diode 25KV,100mA, 75nS

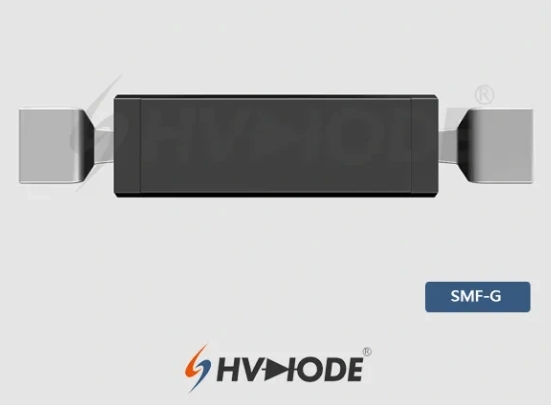

PF25F SMD high voltage diode 25KV,100mA, 75nS

Name: PF25F SMD high voltage diode 25KV,100mA, 75nS
Brand: HVDIODE - Suly Electronics Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Products Main features：
1、SMD connection.
2、High thermal conductivity epoxy compound molding.
3、Fast recovery time for high efficiency.
4、Gullwing(Outer Bend) shapes.
5、Ultra small size package
6、Fast recovery PF Series are the same package size.

GET A QUOTE

Description
data sheet
Installation Guide

PF25F SMD high voltage diode Data Sheet
Parameter	Symbol	Unit	Test Conditions	Value
Repetitive Peak Backward Voltage	Vrrm	KV	Ta=25℃ Ir=1.0μA	25
Peak Working Backward Voltage	Vrwm	KV	Ta=25℃ Ir=1.0μA	25
Average Forward Current	If(AV)	mA	50Hz Half-sine Wave , Resistance load @Tbreak=50℃	100
Backward Recovery Time	Trr	nS		75
Surge Forward Current	Ifsm	A	0.01S @ Half-Sine wave 50Hz	10
Operating Ambient Temperature	Ta	℃		-40～+175
Storage Temperature	Tstg	℃		-40～+150
Forward Peak Voltage	Vfm	V		≥15.6
Backward Peak Current	Irrm1	μA	@ Ta=25℃ VRM=VRRM	1.0
Backward Peak Current	Irrm2	μA	@ Ta=100℃ VRM=VRRM	20.0
Absolute Maximum Ratings & Electrical Characteristics

Unmatched Efficiency with Fast Recovery High Voltage Diode
The PF25F SMD High Voltage Diode is engineered to deliver exceptional performance in demanding industrial applications. With a fast recovery High Voltage diode time of just 75nS, this component ensures high efficiency and reliability, crucial for systems requiring rapid response and minimal downtime. Its high thermal conductivity epoxy compound molding enhances heat dissipation, making it a perfect fit for environments where temperature control is paramount. The Surface Mount High Voltage Diode design allows for seamless integration into PCB High Voltage diode assemblies, ensuring compatibility with various electronic configurations. Whether used in High Voltage Rectifier setups or High Voltage assembly systems, the PF25F guarantees consistent performance, making it an indispensable part of your high-power solutions.

Precision and Performance in High Current High Voltage Diode
Built for precision, the PF25F SMD High Voltage Diode stands out with its gullwing shape, facilitating easy installation and stable connections. This Surface Mount High Voltage Diode is designed to handle an average forward current of 100mA, making it ideal for applications requiring High current high voltage diode capabilities. Its ultra-small package size does not compromise on power, offering a robust solution for High power high voltage diode needs. The PF-Series ensures that each HV diode operates at peak efficiency, providing reliable performance across various industrial settings. Whether in High Voltage Rectifier configurations or standalone High Voltage assembly systems, this diode delivers unmatched precision and durability.

Scalable Design for Ultra-fast Recovery High Voltage Diode Applications
The PF25F SMD High Voltage Diode is not just about immediate performance; it's about scalability and adaptability for future demands. Its compact design allows for easy integration into existing systems, while its Ultra-fast recovery High Voltage diode capabilities ensure readiness for evolving technological requirements. This Surface Mount High Voltage Diode is versatile, suitable for use in insulating oils, gases, or exposed air environments, making it a flexible choice for engineers looking to optimize their PCB High Voltage diode setups. With its ability to withstand temperatures ranging from -40℃ to +175℃, the PF25F is built to last, ensuring long-term reliability in High Voltage Rectifier and High Voltage assembly applications. Embrace the future of high-power electronics with the PF25F, a diode that promises scalability and sustained performance in any HV diode configuration.

Product Advantages

1. Unmatched Efficiency with Fast Recovery
The PF25F SMD High Voltage Diode offers a fast recovery High Voltage diode time of just 75nS, ensuring high efficiency and reliability. This feature is crucial for systems requiring rapid response and minimal downtime. Its high thermal conductivity epoxy compound molding enhances heat dissipation, making it ideal for environments where temperature control is paramount. The Surface Mount High Voltage Diode design allows for seamless integration into PCB High Voltage diode assemblies, ensuring compatibility with various electronic configurations.

2. Precision and Performance in High Current
ApplicationsBuilt for precision, the PF25F SMD High Voltage Diode stands out with its gullwing shape, facilitating easy installation and stable connections. This Surface Mount High Voltage Diode is designed to handle an average forward current of 100mA, making it ideal for applications requiring High current high voltage diode capabilities. Its ultra-small package size does not compromise on power, offering a robust solution for High power high voltage diode needs.

3. Scalable Design for Future Demands
The PF25F SMD High Voltage Diode is not just about immediate performance; it's about scalability and adaptability for future demands. Its compact design allows for easy integration into existing systems, while its Ultra-fast recovery High Voltage diode capabilities ensure readiness for evolving technological requirements. This Surface Mount High Voltage Diode is versatile, suitable for use in insulating oils, gases, or exposed air environments.

4. Durability in Extreme Conditions
With its ability to withstand temperatures ranging from -40℃ to +175℃, the PF25F High Voltage Diode is built to last, ensuring long-term reliability in High Voltage Rectifier and High Voltage assembly applications. This durability makes it a reliable choice for engineers looking to optimize their PCB High Voltage diode setups, providing consistent performance across various industrial settings.

5. Seamless Integration and Compatibility
The PF25F SMD High Voltage Diode guarantees consistent performance, making it an indispensable part of your high-power solutions. Whether used in High Voltage Rectifier setups or standalone High Voltage assembly systems, this diode delivers unmatched precision and durability. Its design ensures that each HV diode operates at peak efficiency, providing reliable performance across various industrial settings.

Usage Scenarios

Scenario 1: Industrial Automation Efficiency
In a high-demand manufacturing plant, the need for rapid response systems is critical. The PF25F Surface Mount High Voltage Diode excels with its fast recovery High Voltage diode time of 75nS, ensuring minimal downtime. Its high thermal conductivity is perfect for environments where temperature control is crucial, making it an ideal component in High Voltage Rectifier setups. This HV diode enhances operational efficiency, reducing costs associated with system failures.

Scenario 2: Power Supply Optimization
For companies designing compact power supplies, the PF25F High current high voltage diode offers a robust solution. Its gullwing shape allows for easy integration into PCB High Voltage diode assemblies, supporting an average forward current of 100mA. This High power high voltage diode ensures stable connections and reliable performance, crucial for maintaining uninterrupted power supply in critical applications.

Scenario 3: Renewable Energy Systems
In solar power systems, efficient energy conversion is vital. The PF25F Ultra-fast recovery High Voltage diode is engineered for scalability, adapting to future technological advancements. Its compact design fits seamlessly into existing High Voltage assembly systems, ensuring long-term reliability and efficiency in energy conversion processes, thus supporting sustainable energy initiatives.

Scenario 4: Aerospace Electronics
Aerospace applications demand components that withstand extreme conditions. The PF25F High Voltage Diode operates efficiently in temperatures from -40℃ to +175℃, making it suitable for use in insulating oils and gases. This Surface Mount High Voltage Diode ensures consistent performance in High Voltage Rectifier configurations, crucial for aerospace systems requiring high reliability.

Scenario 5: Medical Equipment Reliability
In medical imaging devices, precision and reliability are paramount. The PF25F HV diode provides unmatched performance with its fast recovery High Voltage diode capabilities. Its high thermal conductivity ensures effective heat dissipation, crucial for maintaining the accuracy and longevity of sensitive medical equipment, thereby enhancing patient care and diagnostic accuracy.

About Us

HVDIODE is a leading provider of high-performance electronic components, specializing in high voltage diodes designed for demanding industrial applications. Our PF-Series, including the PF25F SMD high voltage diode, exemplifies our commitment to delivering unmatched efficiency and reliability. With a focus on fast recovery times and high thermal conductivity, our products are engineered to meet the rigorous demands of modern technology. Our compact designs and gullwing shapes ensure seamless integration into various systems, making them ideal for high voltage rectifier setups and assemblies. At HVDIODE, we prioritize innovation and quality, ensuring that our components operate at peak efficiency across diverse industrial settings. Our diodes are built to withstand extreme temperatures, offering long-term reliability and scalability for future technological advancements. We are dedicated to supporting engineers and industries worldwide with solutions that drive performance and precision. Explore our range of high voltage diodes and experience the future of high-power electronics with HVDIODE.

Contact HVDIODE today to upgrade your industrial applications with the PF25F SMD high voltage diode's fast recovery time and high thermal conductivity. Let’s enhance your system's efficiency and reliability!

FAQ

Who are we?
We are HVDIODE, a leading provider of high-performance high voltage diodes, specializing in surface mount technology for industrial applications. Our PF-Series diodes are renowned for their fast recovery times and high thermal conductivity, ensuring efficient and reliable performance.

How can we guarantee quality?
We guarantee quality through rigorous testing and quality control processes. Our diodes are manufactured using high-grade materials and advanced technology to ensure they meet the highest industry standards for performance and reliability.

What can you buy from us?
You can purchase a wide range of high voltage diodes, including surface mount high voltage diodes, fast recovery diodes, and ultra-fast recovery diodes. Our products are designed to meet the needs of various industrial applications, ensuring compatibility and efficiency.

Why should you buy from us not from other suppliers?
Our diodes offer unmatched efficiency and reliability, with features like fast recovery times and high thermal conductivity. Our compact designs ensure easy integration into existing systems, making us the preferred choice for engineers seeking high-performance solutions.

What services can we provide?
We provide comprehensive support services, including technical assistance and product customization to meet specific application needs. Our team is dedicated to ensuring customer satisfaction through prompt and professional service.

Can I customize this product for my business?
Yes, we offer customization options to tailor our high voltage diodes to your specific business requirements. Our team works closely with you to ensure the product meets your unique application needs.

How fast can I receive my order?
We strive to process and ship orders promptly to ensure timely delivery. The exact delivery time depends on your location and order specifications, but we are committed to providing efficient service to meet your deadlines.

The selection of high-voltage diodes is closely related to their usage environment。

1. Used in insulating oil. (Recommended)
2. Used in insulating gases. (Recommended)
3. Secondary packaging use. (High requirements for heat dissipation and other parameter performance of components)
4. Use in exposed air or add air cooling. (If the size of the high-voltage diode is small, it is easy to discharge, and the heat dissipation performance is average.)

For high-voltage diodes used in exposed air, it is recommended to install them with insulated electrodes at both ends.

Common treatment methods for surface adhesive insulation:

Characteristics of insulation adhesive material:

1. Silicone material usually presents a transparent and elastic rubber state after curing, which is more effective in shock resistance and can also withstand severe stress changes caused by large high and low temperature changes (-40 ° C~200 ° C).

2. Acrylic materials typically exhibit a transparent and hard coating after curing, with low moisture absorption and fast curing time, as well as excellent wear resistance and insulation.

3. After curing, Urethane material usually presents a transparent and hard coating, which has superior wear resistance and good moisture resistance. Its performance is particularly stable in low temperature environments, but it is less resistant to high temperatures.

4. The coating material based on epoxy is very sturdy and usually opaque, with good moisture and moisture resistance. Its resistance to chemical corrosion and wear is also very good. In addition, epoxy also has good dielectric properties.

Here, suitable insulation adhesive materials can be selected based on the different usage situations of engineers.
